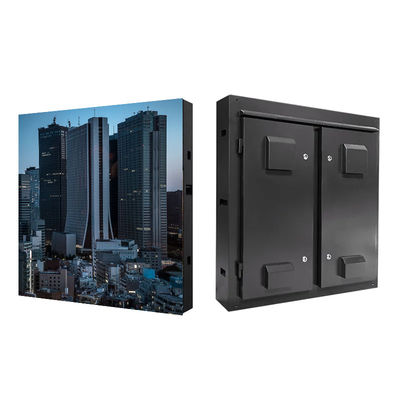

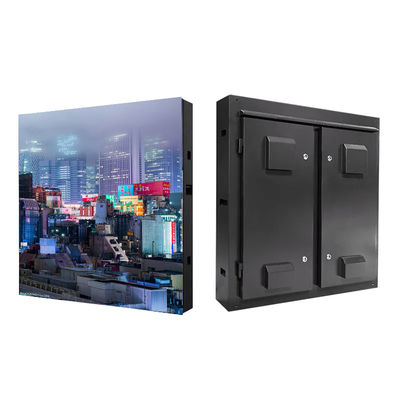

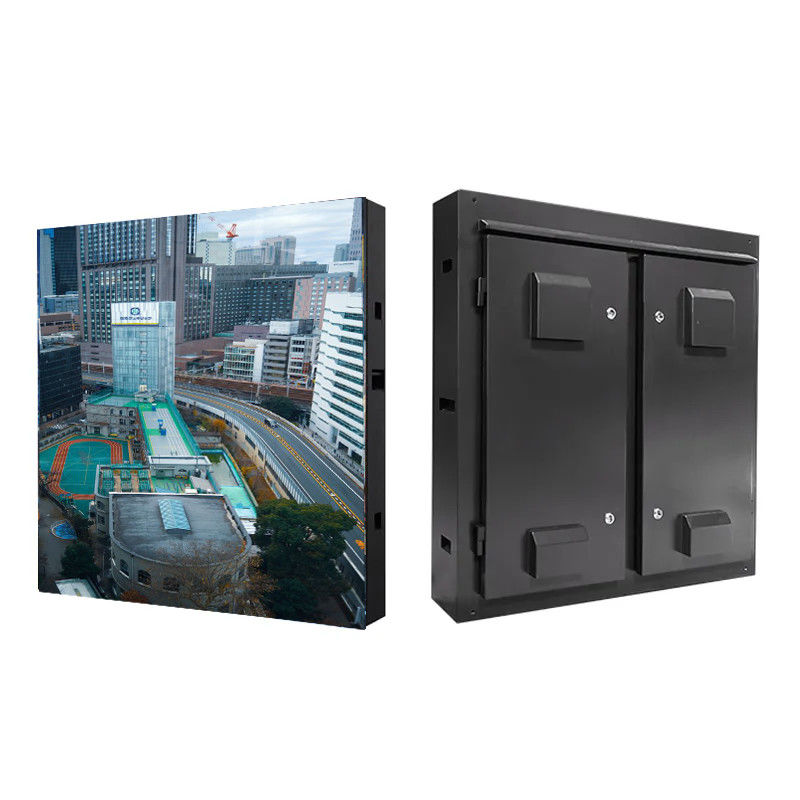

High-Brightness LED Display In High Protection Steel Cabinet
Product Details:
| Place of Origin: | China |
| Brand Name: | VW |
| Certification: | EMC,CE,FCC,ROHS |
| Model Number: | P2.5 P3 P4 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plywood case, export carton box |
| Delivery Time: | less than 6 work days |
| Payment Terms: | T/T |
| Supply Ability: | 1000sqm per month |
|
Detail Information |
|||
| Product Name: | High-Brightness LED Display In High Protection Steel Cabinet | Cabinet Material: | Steel Profile |
|---|---|---|---|
| Cabinet Size: | 1000x1000x90mm | Cabinet Weight: | 30kg/sqm |
| LED Type: | SMD1415 SMD1921 | Lifespan: | 100000 Hours |
| Brightness: | 5500nits | Ip Rating: | IP65 |
| Installation Type: | Mounting Hanging | Max / Avg Power Consumption: | 800 / 280 W/㎡ |
| Refresh Rate: | ＞1920HZ | ||
| Highlight: | High Brightness LED Display,High Protection Steel Cabinet LED Display |
||
Product Description
High-Brightness LED Display In High Protection Steel Cabinet
Product Description:
P2.5, P3 & P4 Outdoor LED Panels – Sharp, Vivid, Impactful
Engineered for stunning outdoor displays, these high-resolution LED panels deliver crisp visuals and vibrant colors that captivate any audience. Perfect for advertising, events, and public installations, they ensure maximum visibility and lasting impact.
Features:
Stunning Clarity: Available in multiple pixel pitches (P2.5, P3, P3.076, P3.33, P4), our displays deliver razor-sharp, high-definition visuals that command attention.
Brilliant Brightness: With an impressive 5500 nits, content stays vivid and crystal clear—even under direct sunlight.
All-Weather Durability: IP65-rated for superior protection, built to withstand the harshest outdoor conditions.
Seamless Visuals: High refresh rates and 14-bit grayscale ensure ultra-smooth playback with rich, dynamic colors.
Effortless Setup: Versatile mounting options enable quick, hassle-free installation.
Technical Parameters:
| Product Model: | P2.5 | P3 | P3.076 | P3.33 | P3.33 | P4 | P4 |
| Pixel Pitch: | 2.5mm | 3mm | 3.076mm | 3.33mm | 3.33mm | 4mm | 4mm |
| LED Type: | SMD1415 | SMD1415 | SMD1415 | SMD1921 | SMD1921 | SMD1921 | SMD1921 |
| Cabinet Dimension: | 960x960mm | 960x960mm | 960x960mm | 960x960mm | 960x960mm | 1024x1024mm | 960x960mm |
| Module Size: | 160×160mm | 192×192mm | 192×192mm | 160×160mm | 320×160mm | 256×128mm | 320×160mm |
| Maintenance | Rear service | ||||||
| Cabinet Weight: | 38 kg | ||||||
| Cabinet Material: | Steel | ||||||
| Driving Type: | 1/16 | 1/16 | 1/13 | 1/12 | 1/12 | 1/8 | 1/10 |
| Brightness: | 5500 nits | ||||||
| Max/Avg Power: | 800/280 W/㎡ | ||||||
| Environment: | Outdoor | ||||||
| IP Rating: | IP65 | ||||||
| Refresh Rate: | >1920 Hz | ||||||
| Installation Type: |
Mounting/Hanging |
||||||
| Gray Scale: | 14 bit | ||||||
| Viewing Angle: | H:140°；V:120° | ||||||
| Operational Temp: | -20℃~+60℃ | ||||||
| Operational Humidity: | 10%~90% RH | ||||||
Application:
For Entertainment
For Advertising In SuperMarket
For Advertising In Suburbs
FAQ:
Q1: What control system is used, and how does it work?
A1: We use the Nova Taurus Series asynchronous control system, which supports cluster playback and management. You can easily control it via various devices, including APP, smartphone, Wi-Fi, iPad, laptop, PC, or through cloud control. It's very user-friendly and convenient.
Q2: Can I place a sample order for an LED screen?
A2: Yes, we encourage sample orders for testing and quality evaluation. Mixed samples are also accepted.
Q3: Can I have my logo printed on the product?
A3: Absolutely. Please let us know in advance and confirm the design based on our sample before production begins.
Q4: What is your delivery time?
A4: Typically, delivery takes 7-15 days after the deposit is received. However, the exact time depends on the order size and items.
Q5: What is your warranty policy?
A5: We offer a 2-year warranty. We also provide full support for structure design, installation issues, system troubleshooting, and screen usage.
Our professional after-sales team, along with your dedicated sales engineer, will assist with any questions you may have after your order.
