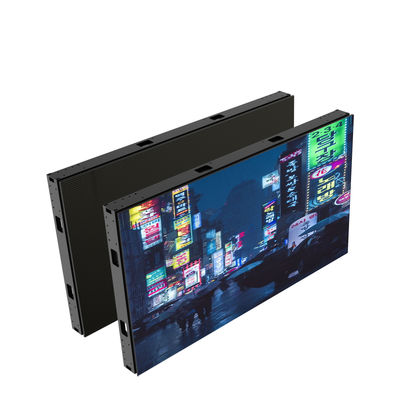

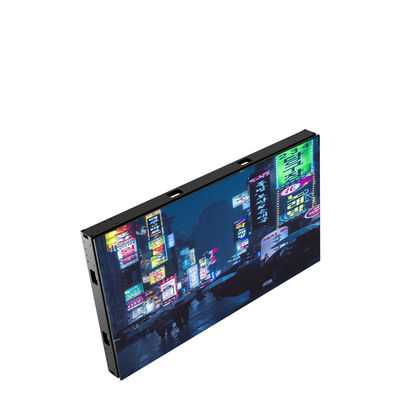

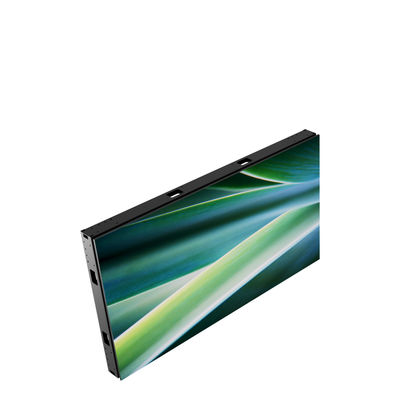

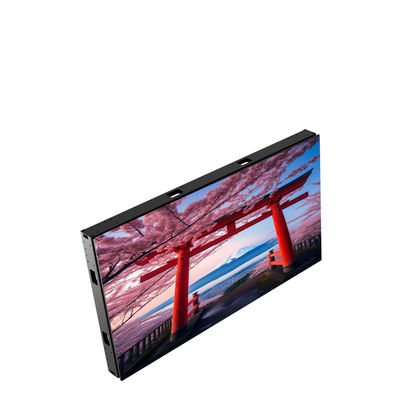

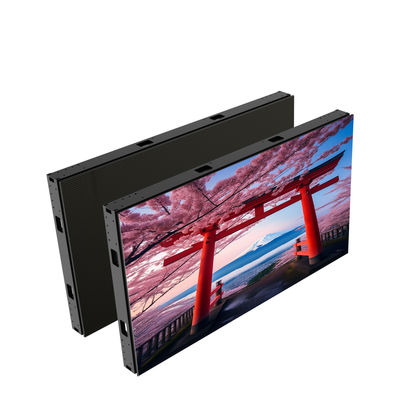

16:9 Golden Screen Ratio FX-Block Series Outdoor Fixed LED Display For Large Event with Fast Lock
Product Details:
| Place of Origin: | China |
| Brand Name: | VW |
| Certification: | CE, ROHS |
| Model Number: | Fixed LED Display |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plywood Case, Carton Box |
| Delivery Time: | 15 days |
| Payment Terms: | T/T |
| Supply Ability: | 3000 sqm/month |
|
Detail Information |
|||
| Product Name: | 16:9 Golden Screen Ratio FX-Block Series,Bset Choice For Large Event With Fast Lock | Module Size: | 480 * 270 Mm |
|---|---|---|---|
| Cabinet Dimension: | 960 * 540 * 73 | Cabinet Weight: | 12.5KG - 13 KG |
| Refresh Rate: | >1920Hz | Gray Scale: | 14 Bit |
| Viewing Angle: | H:140°；V:120° | Operation Temperature: | -20°C~+60°C |
| Operaion Humidity: | 10% —— 90% | Brightness: | 1000nits——5500nits |
| Highlight: | 16:9 Outdoor Fixed LED Display,Fast Lock Outdoor Fixed LED Display,Large Event Outdoor Fixed LED Display |
||
Product Description
16:9 Golden Screen Ratio FX-Block Series,Bset Choice For Large Event with Fast Lock
Product Description
The FX-Block LED display series offers versatile, high-brightness solutions for indoor and outdoor use. With IP54/IP65 ratings and excellent durability, these displays provide smooth, vibrant visuals in all conditions. Lightweight and easy to install, the FX-Block series delivers reliable performance and flexibility for any application.
Product Feature
Versatile Indoor and Outdoor Use
These LED displays are designed for both indoor and outdoor settings, providing adaptable solutions tailored to your specific requirements. The outdoor versions boast enhanced brightness, guaranteeing vivid and clear visuals even in bright sunlight.
Impressive Brightness with Energy Efficiency
The displays combine striking brightness with low power consumption, delivering stunning image quality while keeping energy costs manageable.
Robust Durability and Weather Resistance
Featuring an IP54 or IP65 rating (model-dependent), these displays are engineered to endure tough weather, with excellent resistance to dust and water—perfect for outdoor environments. Their ability to perform reliably across a broad temperature range ensures consistent operation in extreme heat or cold.
Technical Parameters
| Model | FXBOutdoor3.75 | FXBOutdoor3.75 | FXBIndoor 5 | FXBOutdoor 5 | FXBOutdoor 7 |
| Pixel Pitch | 3.75mm | 3.75mm | 5mm | 5mm | 7mm |
| LED Type | SMD2020 | SMD1921 | SMD2020 | SMD1921 | SMD2727 |
| Module SIze | 480*270mm | ||||
| Cabinet Dimension | 960*540*73mm | ||||
| Cabinet Material | Aluminum Profile | ||||
| Cabinet Weight | 12.5KG | 13KG | 12.5KG | 13KG | 13KG |
| Brightness | 1000nits |
5000nits |
1000nits | 5500nits | 5500nits |
| Max/Avg Power | 560/196 W/㎡ | 660/223 W/㎡ | 560/196 W/㎡ | 660/231 W/㎡ | 660/231 W/㎡ |
| Refresh Rate | >1920HZ | ||||
| Gray Scale | 14 Bit | ||||
| Viewing Angle | H:140 ° V:120° | ||||
| IP Rating | F:IP20 R:IP54 | F:IP65 R:IP54 | F:IP20 R:IP20 | F:IP20 R:IP20 | F:IP65 R:IP54 |
| Operational Temp | -20℃ —— +60℃ | ||||
| Operational Humidity | 10% —— 90% | ||||
Product Application
Ceremonies, Concerts, Speeches, Weddings, Live Competitions
Q&A
Q1: Why choose Green Visual World?
A1: How to Select = High Quality + Strict Quality Control + Aging Time + Prompt Shipping Time + Professional & Quick Reply + Risk Free
Visual World = Assured Quality + 5 Steps Strict QC + 72 Hours Aging Time + Ship as fast as we can + Superior 99.8% Customer Satisfaction + 2 Years Warranty.
Q2: What kind of LED display do you offer?
A2: Our products cover LED full color display for indoor and outdoor, Rental LED Display, LED advertisement display, LED stage display, LED irregular-shape display, truck mobile led display, LED sports display, LED traffic information display etc.
Q3: Are there big differences in vision and price?
A3: Yes. The closer the pixel distance, the clearer the display screen can be seen, and the price is relatively high.
