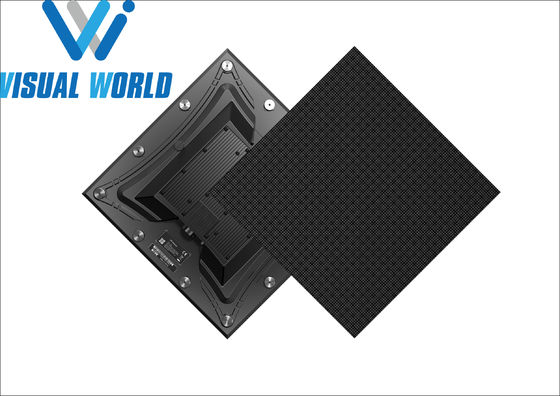

Revolutionary Beveled Edge LED Screen 320mm * 320mm For Creative And Unique Installations
Product Details:
| Place of Origin: | China |
| Brand Name: | VW |
| Certification: | CE, ROHS |
| Model Number: | Smart Module P2.85 P4 P6 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plywood Case, Carton Box |
| Delivery Time: | 15 days |
| Payment Terms: | T/T |
|
Detail Information |
|||
| Product Name: | Revolutionary Beveled Edge LED Screen For Creative And Unique Installations | Cabinet Dimension: | 320mm * 320mm |
|---|---|---|---|
| Cabinet Material: | Die-Casting Aluminum | Maintance: | Front/Back |
| Max/Avg Power: | 620/200 W/㎡; 800/280W/㎡;1000/320w/㎡ | Refresh Rate: | >3840HZ |
| IP Rating: | IP42 ；IP67 | Operational Temperature: | -20 —— +50 ℃ |
| Operational Humidity: | 10% —— 90% | Module Size: | 320mm * 320mm |
| Cabinet Weight: | 3 Kg/set | Cabinet Deminsion: | 320 Mm * 320mm * 53.5mm |
| Highlight: | Creative Beveled Edge LED Screen,Unique Beveled Edge LED Screen,320mm * 320mm LED Screen |
||
Product Description
Revolutionary Beveled Edge LED Screen for Creative and Unique Installations
Product Description
Light as a Feather, Strong as a Rock
Crafted from high-precision die-cast aluminum, each square meter weighs only 15kg—light as a feather yet incredibly sturdy. This ultra-lightweight design not only cuts down on shipping costs but also makes installation effortless. Whether it’s for a dazzling stage or a dynamic outdoor billboard, it adapts with ease and flexibility.

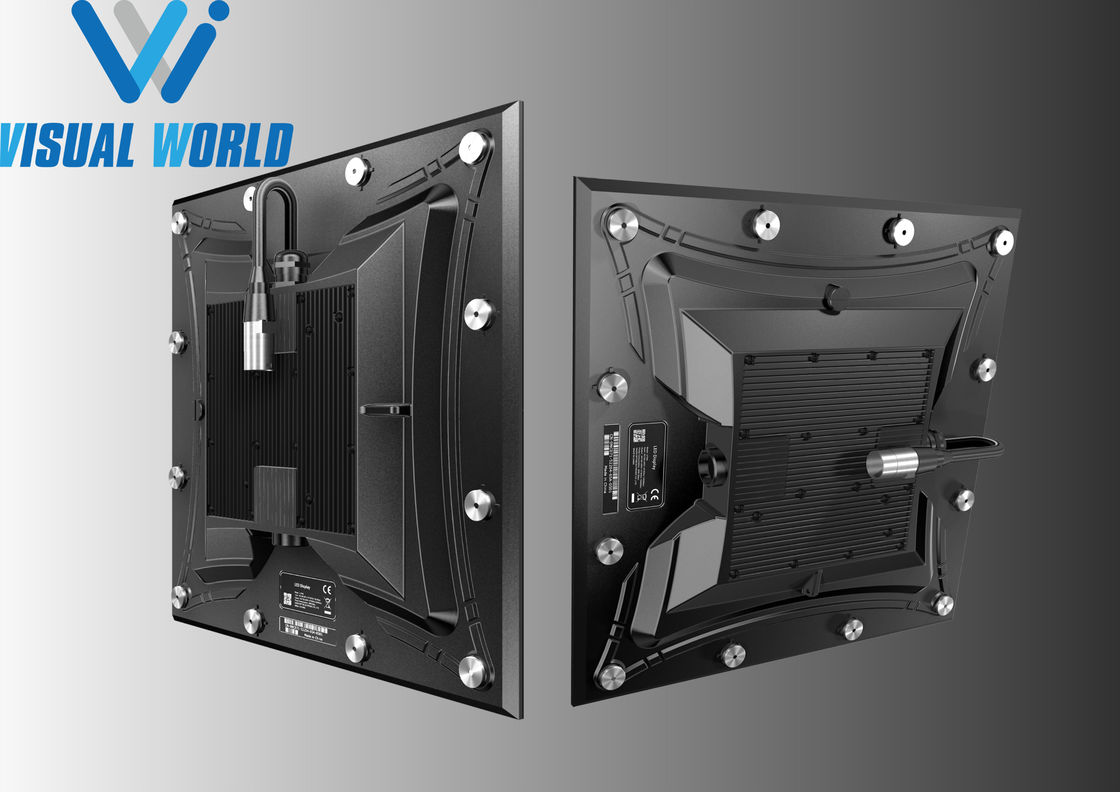

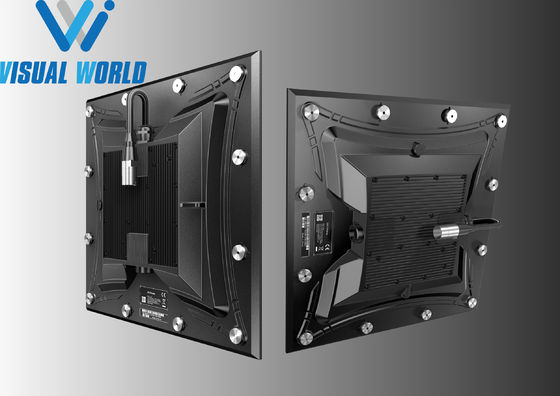

Seamless Integration: Where Technology Meets Art
Breaking away from traditional designs, we have seamlessly integrated the power supply, receiving card, and display module into a single cabinet. This eliminates messy wiring and simplifies installation—like putting together a puzzle. The result? A perfectly smooth display with stunning visuals and ultimate convenience.
Technical Parameter
| Module | Smart Module | |
| Pixel PItch | 2.85mm | 4mm |
| LED Type | SMD1515 | SMD2020 |
| Module Size | 320*320mm | 320*320mm |
| Cabinet Dimension | 320*320*53.5mm | 320*320*53.5mm |
| Cabinet Weight | 3kg/set | 3kg/set |
| Brightness | 1000nits | 1000nits |
| Max/Avg Power | 600/210 W/㎡ | 600/210 W/㎡ |
| IP Rating | IP 42 | IP42 |
| Refresh Rate | >3840HZ | >3840HZ |
| Gray Scale | 16 Bit | 16 Bit |
| Viewing Angle | H;120° V:120° | H;120° V:120° |
| Operational Temp | -20° —— +60° | -20° —— +60° |
| Operational Humidity | 10% —— 90% | 10% —— 90% |
Product Feature
- LIGHT WEIGHT
Die-casting aluminum material, only 15kg/sqm, save shipping cost.
- INTEGRATED DESIGN
Integrate power supply, receiving card and module into one cabinet.
- Waterproof IP67
- 45° BEVELEDGE DESIGN
45° Beveledge design, various shapes splicing
INSTALLATION METHOD
Wall mounted
Cabinet type
Floor standing
Arc-shaped installation
hoisting
Application:
Q&A
Q1: Are you a manufacturer or a trading company?
A1: We are a professional LED manufacturer with over 10 years of experience in the LED industry. We offer OEM & ODM services and provide multi-solution options. Visual World operates as a modern factory, integrating artificial intelligence into LED production to deliver cutting-edge technology and innovation.
Q2: What is your warranty policy?
A2: We offer a minimum 2-year warranty on our products, with some items covered for up to 5 years. Beyond the warranty period, we also provide free repair services—you’ll only need to cover the shipping costs.
Q3: Can I customize my logo on the LED display?
A3: Absolutely! We can print your logo on both the PCB and LED cabinet, allowing you to establish and promote your own brand identity.
