P2.85 Outdoor Fixed LED Screen 5000nits Die-casting Aluminum Front Service
Product Details:
| Place of Origin: | China |
| Brand Name: | VW |
| Certification: | EMC,CE,FCC,ROHS |
| Model Number: | P2.85 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiate |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Plywood case, export carton box |
| Delivery Time: | 3-6 work days |
| Payment Terms: | T/T |
| Supply Ability: | 1000sqm per month |
|
Detail Information |
|||
| Product Name: | P2.85 Outdoor Fixed LED Screen 5000nits Die-casting Aluminum Front Service | Pixel Pitch: | 2.85mm,4mm, 6.67mm |
|---|---|---|---|
| IP Level:: | IP67 | Module Size: | 320x320x37mm |
| Maintenance: | Front Service | Cabinet Material: | Die-casting Aluminum |
| Cabinet Weight: | 15kg/sqm | Brightness: | 5000nits |
| Highlight: | P2.85 Outdoor Fixed LED Screen,5000nits Outdoor Fixed LED Screen |
||
Product Description

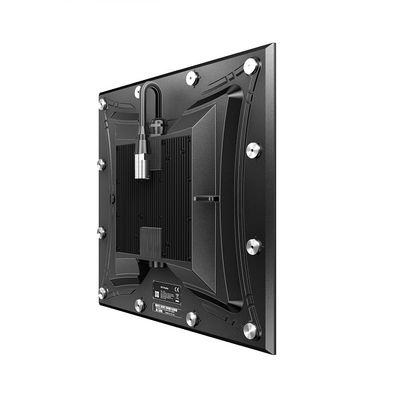

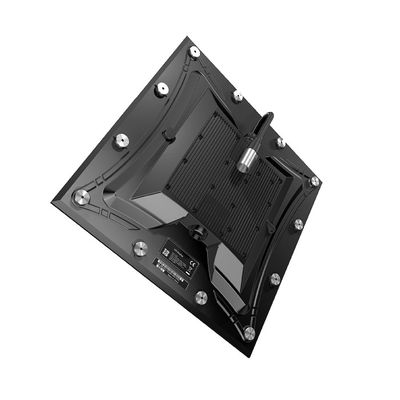

P2.85 Outdoor Fixed LED Screen 5000nits Die-casting Aluminum Front Service
Product Description:

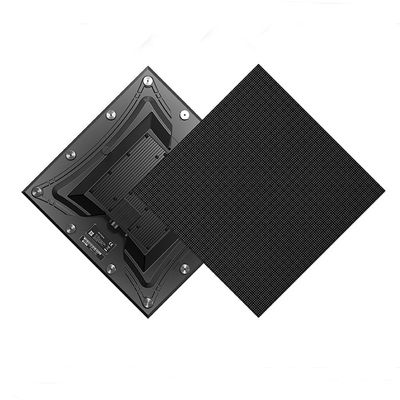

320x320mm Smart LED module / Modular Design / less weight, high protection, easy to rig / IP67 protection level, waterproof and anti-salt / Easy to assemble, install and maintain / Signal and power cable all in one.
Technical Parameters:
| Product Model: | P2.85 | P4 | P6.67 |
| Pixel Pitch: | 2.85 mm | 4 mm | 6.67 mm |
| LED Type: | SMD1921 | SMD1921 | SMD2727 |
| Cabinet Dimension: | 320×320x37 mm | 320×320x37 mm | 320×320x37 mm |
| Module Size: | 320x320 mm | 320x320 mm | 320x320 mm |
| Cabinet Weight: | 15 kg | 15 kg | 15 kg |
| Cabinet Material: | Aluminum | Aluminum | Aluminum |
| Driving Type: | 1/16 | 1/16 | 1/6 |
| Brightness: | >4500 nits | >5000 nits | >5000 nits |
| Max/Avg Power: | 800/200 W/m2 | 800/200 W/m2 | 800/200 W/m2 |
| Maintenance: | Front service | Front service | Front service |
| Environment: | Outdoor Use | Outdoor Use | Outdoor Use |
| IP Rating: | F: IP67, R: IP67 | F: IP67, R: IP67 | F: IP67, R: IP67 |
| Refresh Rate: | >3840 Hz | >3840 Hz | >3840 Hz |
| Installation Type: | Mounting/Hanging | Mounting/Hanging | Mounting/Hanging |
| Gray Scale: | 14 bit | 14 bit | 14 bit |
| Viewing Angle: | H:140°；V:160° | H:140°；V:160° | H:140°；V:160° |
| Operational Temp: | -20℃~+60℃ | -20℃~+60℃ | -20℃~+60℃ |
| Operational Humidity: | 10%~90% RH | 10%~90% RH | 10%~90% RH |
Features:
- LIGHT WEIGHT
Die-casting aluminum material, only 15kg/sqm, save shipping cost.

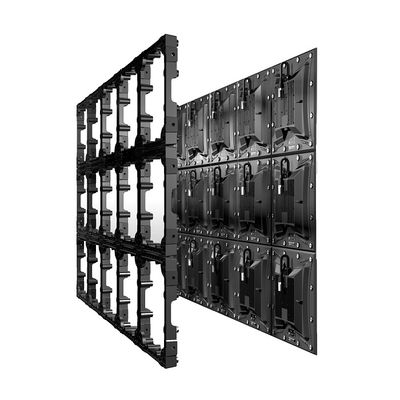

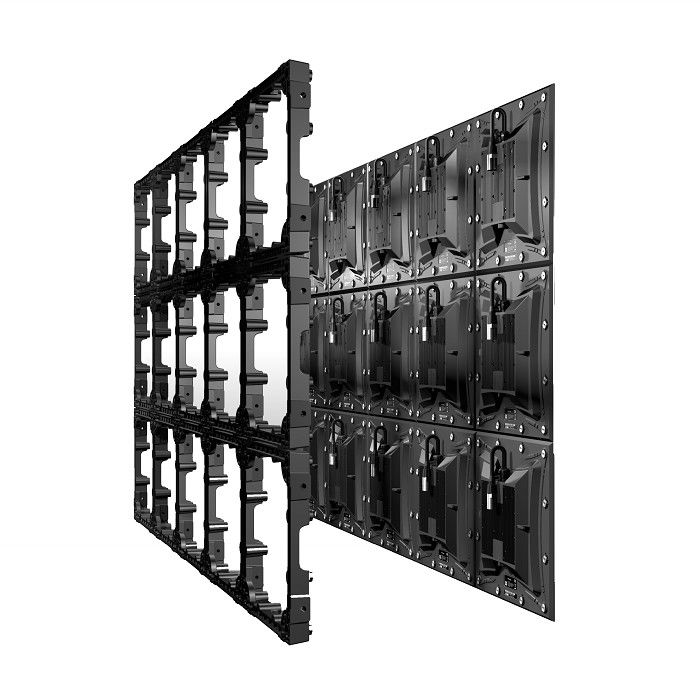

- INTEGRATED DESIGN
Integrate power supply, receiving card and module into one cabinet.
- Waterproof IP67
- 45° BEVELEDGE DESIGN
45° Beveledge design, various shapes splicing
Installation Method
Wall mounted
Cabinet type
Floor standing
Arc-shaped installation
hoisting
Application:
- Shop guide desk
- Park entrance
- Gallery showcase
- Outlets storefront
- Arc video wall
Service and support:
Pre-sale service:
- Inquiries answered within 24 hours.
- Market research and forecasts.
- Customized solutions based on customer needs.
- Data sheets and samples provided.
- Additional services like custom packing and factory visits.
In-sale service:
- Continuous monitoring of production.
- Photos and videos of production upon request.
- Free spare parts.
After-sale service:
- Complaints addressed within 24 hours.
- Maintenance guidance and solutions within 48 hours.
- 24-month warranty.
- Free technician training.
- Free documents: installation guide, software manual, maintenance guide, and control system software CD.
FAQ:
Q1: What kind of led display we provide?
A1: We have indoor/outdoor/rental/Advertising/transparent and poster LED display for your choice.
Q2: Do your led display comply with international certification standards?
A2: Yes, our led display comply with various international certification standards, such as CE certification, RoHS
certification, FCC certification, and so on.
Q3: Do you support custom design and customization requests for your led display?
A3: Yes, we can provide custom design and customization production according to customers' needs to meet their special
requirements and demands.
Q4: How Can We Guarantee Quality?
A4: Seven quality control steps ensure your ordered screens good:
1).Our customers are long-term cooperated large famous company.
2).Material check by professional workers and machines.
3).Debug every modules.
4). 48-hour aging test for all modules before assembling.
5).Test every cabinet's function after assembling by engineers and machines.
6).72-hour aging test for whole screen before shipment.
7). All details final inspection again before package.
Q5: How about the warranty?
A5: 2 years warranty.
