Outdoor Fixed LED Screen 480*320 mm Module Size IP66 3840HZ Refresh Rate For Tomorrow Land
Product Details:
| Place of Origin: | China |
| Brand Name: | VW |
| Certification: | CE, ROHS |
| Model Number: | Outdoor Fixed LED Display |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plywood Case, Carton Box |
| Delivery Time: | 15 days |
| Payment Terms: | T/T |
| Supply Ability: | 3000 sqm/month |
|
Detail Information |
|||
| Product Name: | Outdoor Fixed LED Screen In 960 * 960 Mm Cabinet Size High Brightness High Refresh Rate For Ultra Music Festival | Modul Size: | 480mm * 320mm |
|---|---|---|---|
| Cabinet Dimension: | 960mm * 960mm | Cabinet Weight: | 21KG |
| Refresh Rate: | 3840 HZ | Gray Scale: | 12 BIt |
| Brightness: | 5000 —— 10000 Nits | IP Rating: | IP66 |
| Working Temperature: | -30℃ —— +50℃ | Working Humidity: | 10% —— 90% |
| Highlight: | IP66 Outdoor Fixed LED Screen,3840HZ Outdoor Fixed LED Screen |
||
Product Description
Outdoor Fixed LED Screen in 960 * 960 mm Cabinet Size High Brightness High Refresh Rate For Ultra Music Festival
Product Description
Our Product Is Best For Large Event Like Ultra Music Festival Tomorrow Land Election Gathering For Its High Refresh Rate High Brightness and IP 66 WaterProof Dustproof and Broad Viewing Angle.
Product Features
- Pixel Pitch Options: Available in 4mm, 5.7mm, 8mm, and 10mm to suit various resolution needs.
- Module Size: 480mm × 320mm.

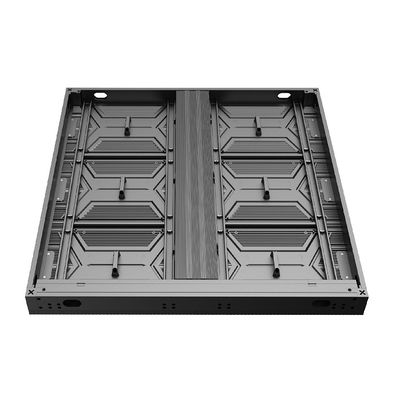

- Cabinet Dimensions: 960mm × 960mm × 96mm, ensuring a compact and uniform design.
- Cabinet Weight: 21kg, lightweight for easy installation.
- Brightness: 5000 to 10,000 nits, ideal for outdoor visibility.
- Scan Modes: Includes 1/8 Scan, 1/7 Scan, 1/5 Scan, and 1/2 Scan based on pixel pitch.
- Refresh Rate: Exceeds 3840Hz for smooth, flicker-free visuals.
- Gray Scale: 12-bit for high-quality color representation.
- Viewing Distance: Optimal at ≥4 meters.
- Viewing Angle: Horizontal ≤110°, Vertical ≤110° for wide audience coverage.
- Power Consumption: Maximum ≤100W, energy-efficient design.
- IP Rating: IP66, providing excellent protection against dust and water.
- Working Temperature: Operates between -30°C to +50°C for extreme outdoor environments.
- Working Humidity: Functional in humidity levels ranging from 10% to 90%.
- Storage Temperature: Safely stored between -40°C and +50°C.
Technial Parameters
| Product Type | Outdoor FIxe LED DIsplay | |||
| Pixel Pitch | 4mm | 5.7mm | 8mm | 10mm |
| Module Size | 480mm*320mm | |||
| Cabinet Dimension | 960mm*960mm*96mm | |||
| Cabinet Weight | 21KG | |||
| Brightness | 5000-10000Nits | |||
| Scan Mode | 1/8 Scan | 1/7 Scan | 1/5 Scan | 1/2 Scan |
| Refresh Rate | >3840 HZ | |||
| Gray Scale | 12 Bit | |||
| Viewing Distance | ≥4m | ≥5.7m | ≥8m | ≥10m |
| Viewing Angle | H : ≤110° V : ≤ 110° | |||
| Max Power Consumption | ≤ 100W | |||
| IP Rating | IP 66 | |||
| Working Temperature | -30℃ —— +50℃ | |||
| Working Humidity | 10% —— 90 % | |||
| Storage Temperature | -40 ℃ —— +50℃ | |||
Product Application
Stage rental, outdoor advertising, outdoor concerts, outdoor speeches, gatherings.
Q&A
What is the Warranty Term and how long is it?
For most product and projdect,we offer 2 years warranty term for free. If you have any special demand,we could discuss and come out another term in a fair price.
What about shipment?
By Air,Sea and Railroad,all kinds of way.Buyer's choice,Buyer's cost.
Can I order a sample order?
Yes!Our minimum order is one.
