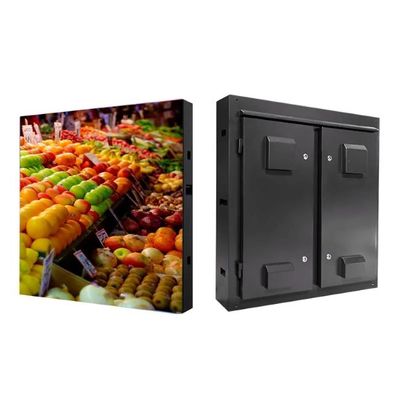

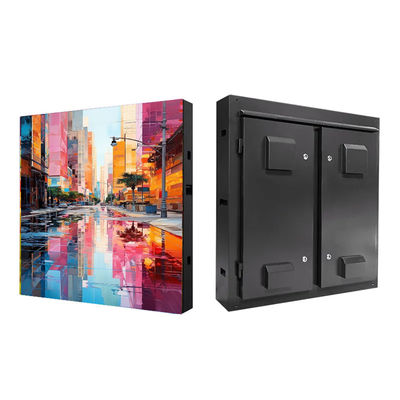

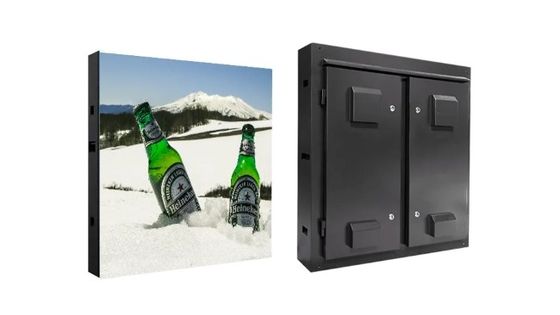

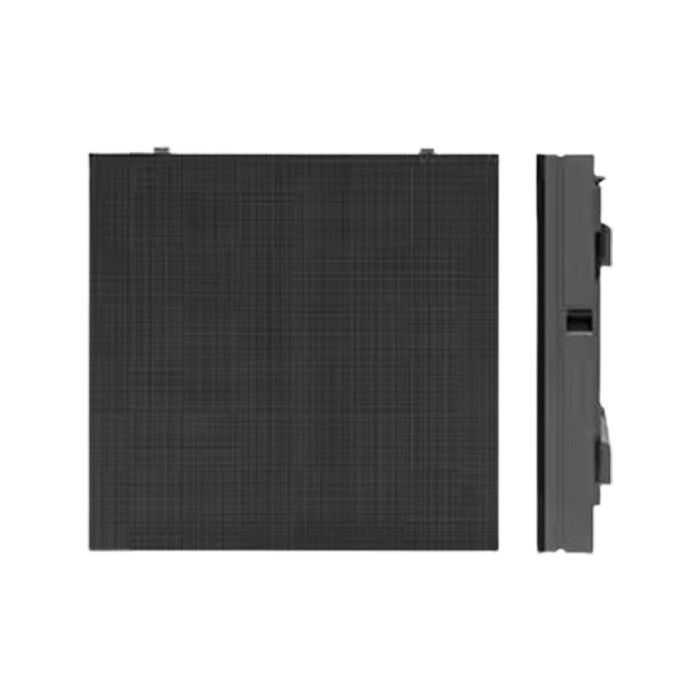

P6.67 Outdoor LED Display Screen SMD3535 High Brightness With Locks For Concert
Product Details:
| Place of Origin: | CN |
| Brand Name: | VW |
| Certification: | CE, ROHS, EMC |
| Model Number: | P6.67 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiate |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Plywood case |
| Delivery Time: | 15 work days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 2000sqm/month |
|
Detail Information |
|||
| Product Name: | P6.67 Outdoor LED Display Screen SMD3535 High Brightness With Locks For Concert | LED Type: | SMD3535 |
|---|---|---|---|
| Cabinet Dimension: | 960x960mm | Chip Color: | RGB Full Color |
| Pixel Density: | 28224 Dots/sqm | Maintenance: | Rear Service |
| Cabinet Weight: | 38 Kg | Application: | Outdoor Wall Mounting Advertising Video Wall |
| Module Connection: | Locks | Brightness: | 5500 Nits |
| Highlight: | SMD3535 Outdoor LED Display Screen,P6.67 Outdoor LED Display Screen |
||
Product Description
P6.67 Outdoor LED Display Screen SMD3535 High Brightness With Locks For Concert
Product Description:
Fixed LED display screens refer to screens installed in a fixed position. Depending on the conditions, they can be installed indoors or outdoors. With powerful features including lightweight, dust prevention, waterproofness, high-temperature resistance, flame retardancy, automatic power on/off, and brightness control, Visual World offers the most stable and long-service-life outdoor fixed installation LED displays.
Features:
- Waterproof
Robust aluminum cabinet with an IP65 protection rating, offering durable and efficient heat dissipation for outdoor use.
- Front Service
The cabinet and module feature compatible front locks, enabling technicians to perform maintenance easily from the front.
- High Brightness
Customized PCB module and dedicated power supply deliver brightness levels up to 6000 nits.
- Wide Viewing Angles
140° horizontal and 140° vertical wide viewing angles ensure clear visibility from various distances.
- Quick Installation
Designed with simple internal cable connections and positioning pins for fast and easy setup.
Technical Parameters:
| Product Model: | P5 | P5 | P5.926 | P6 | P6.67 | P8 | P8 |
| Pixel Pitch: | 5mm | 5mm | 5.926mm | 6mm | 6.67mm | 8mm | 8mm |
| LED Type: | SMD1921 | SMD1921 | SMD2727 | SMD2727 | SMD3535 | SMD3535 | SMD3535 |
| Cabinet Dimension: | 960x960mm | 960x960mm | 960x960mm | 960x960mm | 960x960mm | 960x960mm | 960x960mm |
| Module Size: | 160×160mm | 320×160mm | 320×160mm | 192×192mm | 320×160mm | 256×128mm | 320×160mm |
| Maintenance | Rear service | Rear service | Rear service | Rear service | Rear service | Rear service | Rear service |
| Cabinet Weight: | 38 kg | 38 kg | 38 kg | 38 kg | 38 kg | 38 kg | 38 kg |
| Cabinet Material: | Steel | Steel | Steel | Steel | Steel | Steel | Steel |
| Driving Type: | 1/8 | 1/8 | 1/7 | 1/8 | 1/6 | 1/4 | 1/5 |
| Brightness: | 5200 nits | 5200 nits | 5800 nits | 5000 nits | 5500 nits | 5500 nits | 5800 nits |
| Max/Avg Power: | 800/280 W/m2 | 800/280 W/m2 | 800/280 W/m2 | 800/280 W/m2 | 800/280 W/m2 | 800/280 W/m2 | 800/280 W/m2 |
| Environment: | Outdoor | Outdoor | Outdoor | Outdoor | Outdoor | Outdoor | Outdoor |
| IP Rating: | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 |
| Refresh Rate: | >1920 Hz | >1920 Hz | >1920 Hz | >1920 Hz | >1920 Hz | >1920 Hz | >1920 Hz |
| Installation Type: |
Mounting /Hanging |
Mounting /Hanging |
Mounting /Hanging |
Mounting /Hanging |
Mounting /Hanging |
Mounting /Hanging |
Mounting /Hanging |
| Gray Scale: | 14 bit | 14 bit | 14 bit | 14 bit | 14 bit | 14 bit | 14 bit |
| Viewing Angle: | H:140°；V:120° | H:140°；V:120° | H:140°；V:120° | H:140°；V:120° | H:140°；V:120° | H:140°；V:120° | H:140°；V:120° |
| Operational Temp: | Outdoor | Outdoor | Outdoor | Outdoor | Outdoor | Outdoor | Outdoor |
| Operational Humidity: | 10%~90% RH | 10%~90% RH | 10%~90% RH | 10%~90% RH | 10%~90% RH | 10%~90% RH | 10%~90% RH |
Application:
Outdoor creative modeling
Building entrance
Park entrance
Swimming pool
Advertising billboard
Playing field
Outdoor activity area
Roadside poster
Building exterior wall
Support and service:
- Pre-sale service:
Inquiries will be replied within 24 hours. Market research and forecast for customers. Provide unique and professional solutions based on customer's requirements. Data sheet and samples offered. Other required services such as special packing design, factory visits, and so on.
- In-sale service:
Tracking producing procedures all the time. Provide photos and videos as per customer's requirement during production. Free spare parts are provided.
- After-sale service:
The complaint response period does not exceed 24 hours; maintenance guidance and problem solutions are supplied within 48 hours. Warranty: 24 months. Free technician training. Full set of documents free of charge, which includes installation guidance, software operation manual, easy maintenance manual control system software CD, and so on.
FAQ
Q1: Can you provide customized services?
A1: We offer customization services to meet your specific needs. We can customize them to the way you want them to look, like size, shape, features, and more.
Q2: Is it printing our logo on the LED screen product?
A2: Yes, we can print your logo according to your request.
Q3: Can I order a sample for the LED display screen?
A3: Yes, we welcome you to order a sample to test and check quality. You can choose any item that you want.
Q4: What Services Can We Provide?
A4: 2-year quality warranty for all products. If any components need to be repaired or replaced, you can send them back to Shenzhen.
Q5: How can I select your product?
A5: Firstly, you need to tell us your requirements such as the viewing distance, size, installation height, and some other details for the LED screen that you want. Then, we will give you a recommendation.
