P3.9 Outdoor Fixed LED Display SMD1921 1000x1000mm Aluminum Profile Cabinet
Product Details:
| Place of Origin: | China |
| Brand Name: | VW |
| Certification: | EMC,CE,FCC,ROHS |
| Model Number: | P3.9 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiate |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Plywood case, export carton box |
| Delivery Time: | 3-6 work days |
| Payment Terms: | T/T |
| Supply Ability: | 1000sqm per month |
|
Detail Information |
|||
| Product Name: | P3.9 Outdoor Fixed LED Display SMD1921 1000x1000mm Aluminum Profile Cabinet | Pixel Pitch: | 3.9mm |
|---|---|---|---|
| Cabinet Material: | Aliuminum Profile | LED Type:: | SMD1921, 3 In 1 |
| Cabinet Size: | 1000x1000mm | Module Size: | 500x250mm |
| Cabinet Weight: | 29kg/sqm | Brightness: | 6000nits |
| Highlight: | SMD1921 Outdoor Fixed LED Display,P3.9 Outdoor Fixed LED Display |
||
Product Description

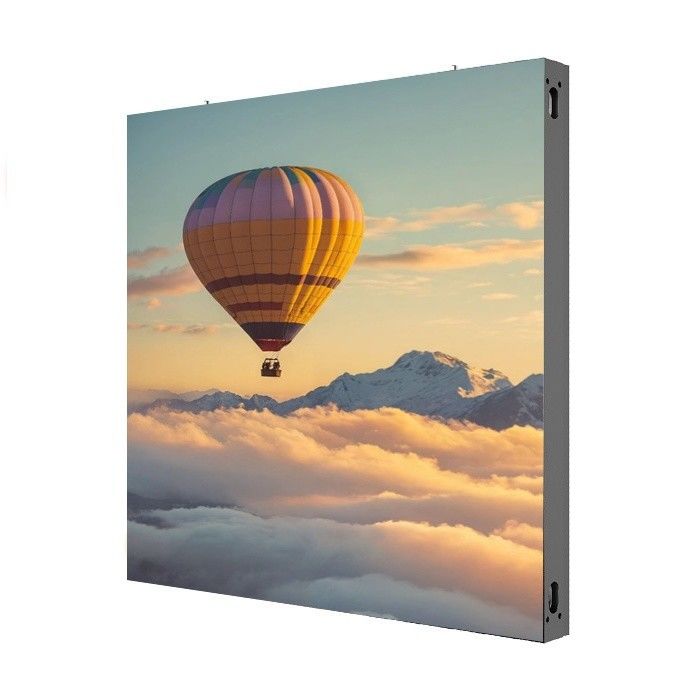

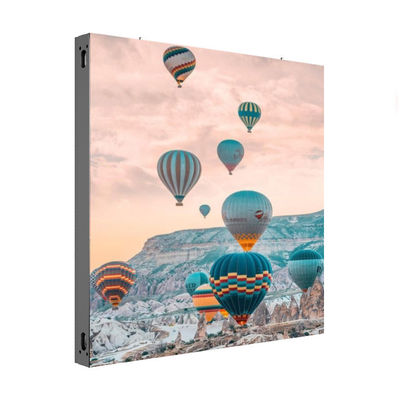

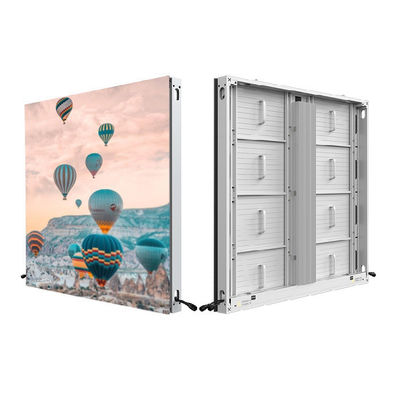

P3.9 Outdoor Fixed LED Display SMD1921 1000x1000mm Aluminum Profile Cabinet
Product Description:
The P3.9 Outdoor Fixed LED Display comes in a rugged 1000 x 1000mm enclosure and is designed to provide a top-notch visual experience in outdoor environments. This advanced display solution has been designed with a focus on long-lasting performance and lifelike, vivid images, making it ideal for applications requiring high visibility and resilience.
Features:
-
Portable and cost-effective: The LED cabinet is made of lightweight aluminum, weighing approximately 29kg per square meter, which helps reduce shipping expenses.
-
Efficient thermal management: The fanless design, combined with the aluminum base of the module, ensures effective heat dissipation.
-

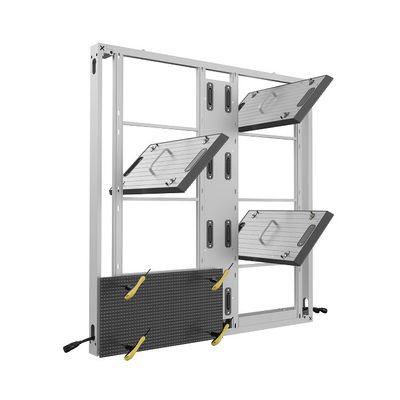

Easy front access: The display offers 100% full front maintenance, allowing for easy removal and servicing of the LED module and power box from the front side.
-
Sleek and compact: With a cabinet thickness of just 90mm, this ultra-slim design is perfect for space-saving installations.
Technical Parameters:
| Technical Parameters | Outdoor Fixed LED Display Screen |
| Product Model: | P3.9 |
| Pixel Pitch: | 3.9 mm |
| LED Type: | SMD1921 |
| Cabinet Dimension: | 1000×1000x90 mm |
| Module Size: | 500x250 mm |
| Cabinet Weight: | 29 kg |
| Cabinet Material: | Aluminum |
| Driving Type: | 1/8; 1/16 |
| Brightness: | >6000 nits |
| Max/Avg Power: | 800/265 W/m2 |
| Maintenance: | Front service |
| Environment: | Outdoor Use |
| IP Rating: | F: IP65, R: IP65 |
| Refresh Rate: | >3840 Hz |
| Installation Type: | Mounting/Hanging |
| Gray Scale: | 14 bit |
| Viewing Angle: | H:140°；V:120° |
| Operational Temp: | -20℃~+60℃ |
| Operational Humidity: | 10%~90% RH |
Applications:
Widely used in stage rental, song, and dance activities, various conferences, exhibitions, stadiums, theaters, auditoriums, lecture halls, multi-function halls, conference rooms, performance halls, disco bars, nightclubs, high-end entertainment disco, TV Spring Festival Gala, important cultural activities in various provinces and cities and other places.
Support and Service:
- Pre-sale service:
Inquiries will be replied within 24 hours. Market research and forecast for customers. Provide unique and professional solutions based on customer's requirements. Data sheet and samples offered. Other required services such as special packing design, factory visits, and so on.
- In-sale service:
Tracking producing procedures all the time. Provide photos and videos as per customer's requirement during production. Free spare parts are provided.
- After-sale service:
The complaint response period does not exceed 24 hours; maintenance guidance and problem solutions are supplied within 48 hours. Warranty: 24 months. Free technician training. Full set of documents free of charge, which includes installation guidance, software operation manual, easy maintenance manual control system software CD, and so on.
FAQ:
Q1: What is the control system? How is it?
A1: We use Nova Taurus Series asynchronous control system. Support cluster play and management. Support APP/Phone/ WIFI/ Ipad/Laptop/ PC/ Cloud control. It’s very easy and convenient to control.
Q2:Can you provide customized services?
A2:Yes,we can design different category of products according to your demand.
Q3: Is it OK to print our logo on led screen product?
A3: Yes,we can print your logo according your request.
Q4. Do you have any MOQ limit for led screen order?
A4: Low MOQ, 1pc for sample checking is available
Q5. How do you ship the goods and how long does it take to arrive?
A5: We usually ship by express (DHL, UPS, FedEx ). It usually takes 3-5 days to arrive.
Airline and sea shipping also optional.
Q6. How to proceed an order for led display?
A6: Firstly let us know your requirements or application, liking project size, rental or fixed installation.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the order and places deposit for formal order.
Fourthly We arrange the finished display cabinet.
Q7: Do you offer guarantee for the products?
A7: Yes, we offer 2 years warranty to our products.
