Full Color Waterproof LED Display Screen with High Definition and Hard Connection
Product Details:
| Place of Origin: | CN |
| Brand Name: | VW |
| Certification: | CE, ROHS, LVD, EMC |
| Model Number: | P5.71 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiate |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Plywood case |
| Delivery Time: | 8-10 work days |
| Payment Terms: | T/T, Western Union, D/P |
| Supply Ability: | 2000 sqm/month |
|
Detail Information |
|||
| Product Name: | P5.71 Outdoor Led Display Screen Hot Sale High Definition Full Color Waterproof | Pixel Pitch: | 5.71 Mm |
|---|---|---|---|
| LED Type: | SMD2727 | Cabinet Dimension: | 960x960 Mm |
| Module Size: | 480x320 Mm | Pixel Density: | 30625 Dots/sqm |
| Function: | Module Flash, Synchronous/asynchronous Control, Flame Retardancy | Cabinet Material: | Aluminum Profile |
| Module Connection: | Hard Connection | Brightness: | 6000 Nits |
| Highlight: | Full Color LED Display Screen,Hard Connection LED Display Screen,Waterproof LED Display Screen |
||
Product Description
P5.71 Outdoor Led Display Screen Hot Sale High Definition Full Color Waterproof
Product Description:
The P5.71 high-definition full-color Outdoor LED display Screen is a durable, high-brightness solution tailored for outdoor use. Featuring a 5.71mm pixel pitch, it provides an optimal balance of resolution and viewing distance, making it ideal for various outdoor applications.
Features:
- Dual port module
These modules have 2 ports for connecting, and both can be used, so there won’t be a left and right side to choose from when doing installation or repair.

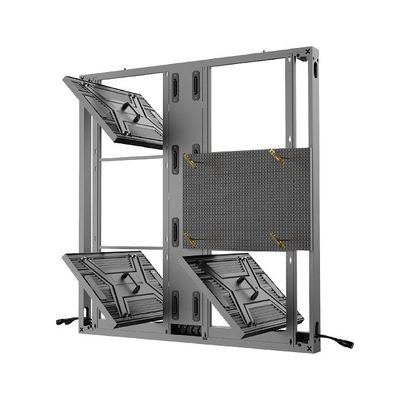

- Front rear service
Module and power box are reachable from the front or rear side, convenient to use, and meet different kinds of project conditions.
- Waterproof
Up to IP66 protection level for outdoor use. Durable and stable.

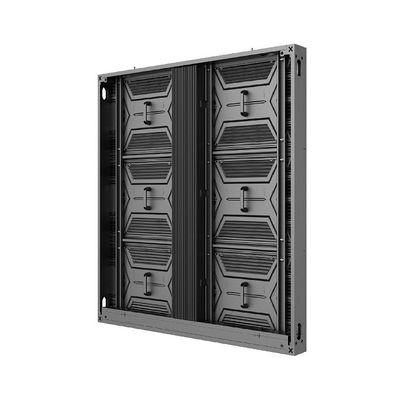

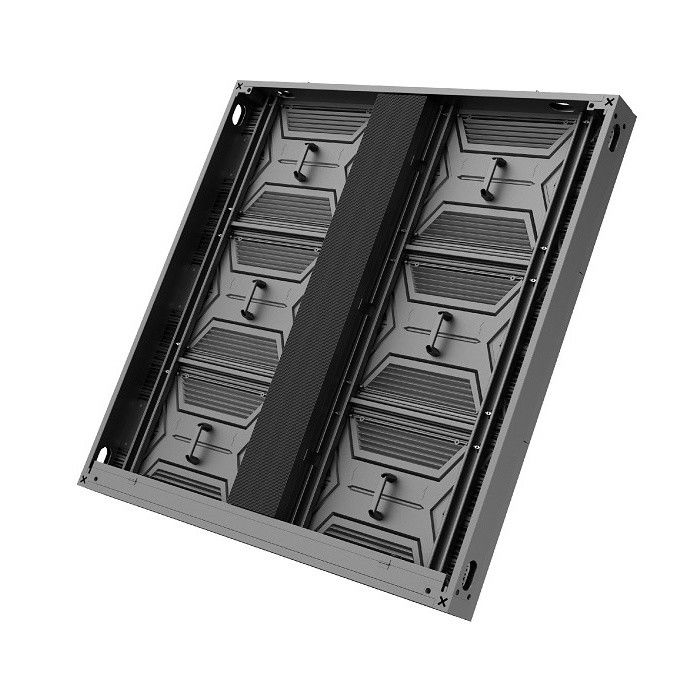

- Fast heat dissipation
The whole frame is made of an aluminum profile, and the modules do not have a closed structure. The heat passes through the frame and module itself, extending the life of the LED display.
- Hard connection
Modules connect to the hub board directly to communicate without cables. Convenient and fast, accurate positioning, no cables need to be organized.
Technical Parameters:
| Technical Parameters | Outdoor Fixed LED Display Screen |
| Product Model: | FIA-Outdoor |
| Pixel Pitch: | 5.71 mm |
| LED Type: | SMD2727 |
| Cabinet Dimension: | 960x960 mm |
| Cabinet Resolution: | 168*168 pixels |
| Module Size: | 480x320 mm |
| Module Resolution: | 84*56 pixels |
| Module Qty/cabinet: | 2x3=6pcs |
| Pixel Density: | 30625 dots/sqm |
| Cabinet Weight: | 22 kg |
| Cabinet Material: | Aluminum profile |
| Cabinet Color: | Black / White |
| Driving Type: | 1/9 |
| Brightness: | 6000 nits |
| Max/Avg Power: | 600/170 W/m2 |
| Maintenance: | Front rear service |
| Environment: | Outdoor Use |
| IP Rating: | IP66 |
| Refresh Rate: | >3840 Hz |

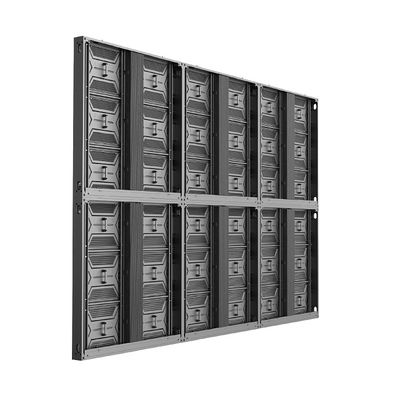

| Installation Type: | Mounting/Stacking |
| Gray Scale: | 14 bits |
| Viewing Angle: | H:140°；V:140° |
| Operational Temp: | -20℃~+50℃ |
| Operational Humidity: | 10%~90% RH |
Applications:
-
Highway Billboards: Fixed LED displays along highways are perfect for high-visibility advertising, offering bright, clear content to drivers from long distances. Their durability ensures consistent performance in all weather conditions.
-
Pole LED Walls: Mounted on poles in public areas or streets, LED walls are ideal for displaying announcements, advertisements, and public service messages. Their elevated position and vivid display ensure wide visibility, even in daylight.
-
Outdoor Advertising: These screens are widely used in outdoor advertising campaigns due to their ability to attract attention with dynamic content, ensuring brands reach a broad audience in high-traffic areas like shopping centers and plazas.
Support and service:
Full-service support throughout the process.
Pre-sales:
We offer detailed production instructions and professional installation guidance.
Sales:
We provide customized solutions, visual designs, and project showcases.
After-sales:
Two-year warranty, professional maintenance team, timely assistance, spare parts provision, free training, logistics tracking, and continuous software improvement.
FAQ:
Q1: Can you accept the sample orders?
A1: Yes, we accept sample orders for quality verification and market testing.
Q2: Does there have any warranty?
A2: Yes, a two-year warranty for all products.
Q3: What is the cost of shipping?
A3: Shipping costs vary by weight; we’ll choose the most affordable and secure option based on your quantities.
Q4: How can we guarantee quality?
A4: Always a pre-production sample before mass production; Always final Inspection before shipment.
Q5: Can I customize it?
A5: Of course. All the goods can be customized, we have a professional product development team, welcome to customize.
Q5. How do you make our business long-term and good relationship?
A5:a. We promise best quality and competitive price to ensure our clients will benefit more from our products; We are frank with all of our customers. We believe that a win-win situation can achieve long-term business cooperation.
