P1.875 Flexible LED Video Wall 240*120 mm Module With Magnets Front Service
Product Details:
| Place of Origin: | China |
| Brand Name: | VW |
| Certification: | EMC,CE,FCC,ROHS |
| Model Number: | P1.875 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiate |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Plywood case, export carton box |
| Delivery Time: | 3-6 work days |
| Payment Terms: | T/T |
| Supply Ability: | 2000sqm per month |
|
Detail Information |
|||
| Product Name: | P1.875 Flexible LED Video Wall 240*120 Mm Module With Magnets Front Service | Pixel Pitch: | P1.25,P1.579,P1.667,P1.875,P2,P2.5,P3,P4 |
|---|---|---|---|
| Module Size: | 240*120 Mm | Curved Angle: | 110°-180° |
| Cabinet Material: | Steel Cabinet With Painting | Module Weight: | 0.2kg |
| Brightness: | 600-1000 Nits | Maintenance: | Magnets Front Service |
| Highlight: | Front Service Flexible LED Video Wall,240*120 mm Flexible LED Video Wall,P1.875 Flexible LED Video Wall |
||
Product Description
P1.875 Flexible LED Video Wall 240*120 mm Module With Magnets Front Service
DESCRIPTION:
P1.875 Flexible LED Video Wall is a revolutionary display solution that brings versatility and high-definition visuals to various applications. With a pixel pitch of 1.875mm, this module ensures crisp and detailed imagery, making it ideal for close viewing and high-resolution content display.
FEATURES:

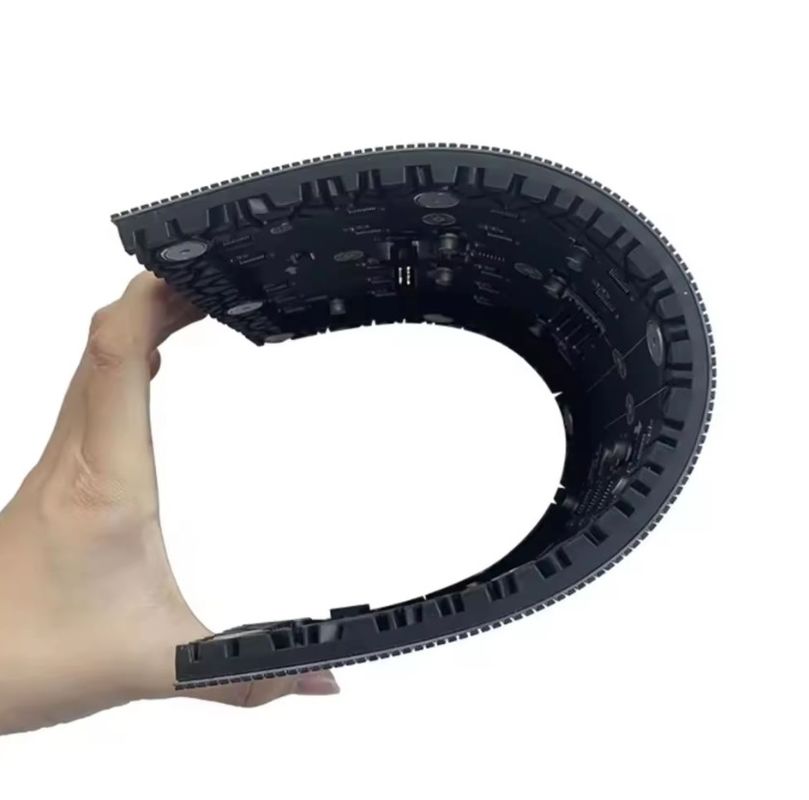

- FLEXIBLE
Soft PCB design, can be curved, flexible installation

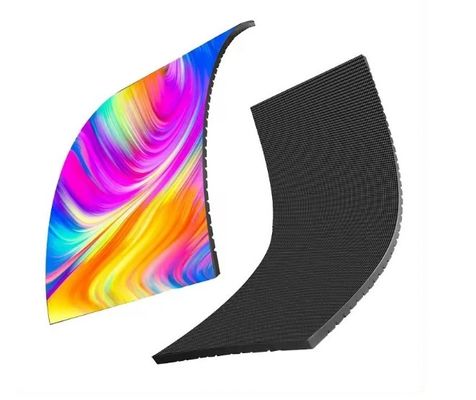

- CURVED
Curved angle from 110° to 180°, inner and outer curved
-

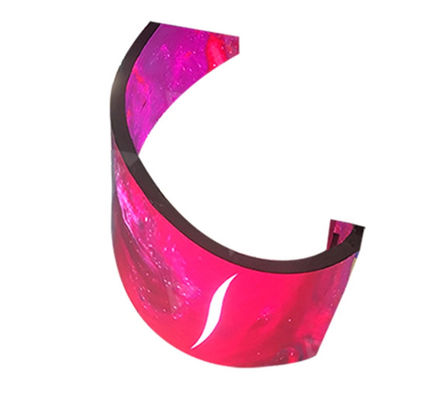

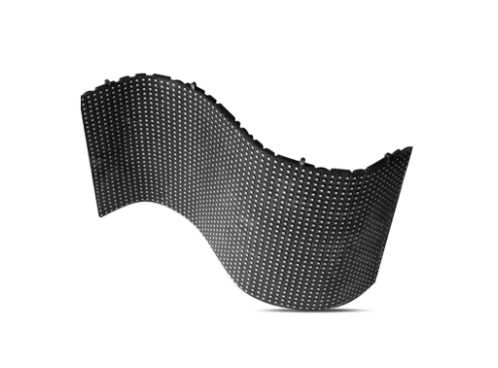

MULTI-SHAPES AVAILABLE
Flexible modules work for round, convex, concave, S shapes and other irregular shapes.
-
MAGNETIC FRONT SERVICE
Completely front service with magnets on the modules. Safety rope can be added to the module for hanging or high installation position.
TECHNICAL SPECIFICATIONS:
| Product Model: | P1.25 | P1.579 | P1.667 | P1.875 |
| Pixel Pitch: | 1.25 mm | 1.579 mm | 1.667 mm | 1.875 mm |
| LED Type: | SMD1010 |
SMD1212 |
SMD1212 | SMD1515 |
| Module Resolution: | 192*96 pixels | 152*76 pixels | 144*72 pixels | 128*64 pixels |
| Module Size: | 240*120mm | 240*120mm | 240*120mm | 240*120mm |
| Module Weight: | 0.215 kg | 0.203 kg | 0.195 kg | 0.216 kg |
| Cabinet Material: | Iron wiht painting | Iron wiht painting | Iron wiht painting | Iron wiht painting |
| Driving Type: | 1/48 | 1/38 | 1/36 | 1/32 |
| Brightness: | 600-1000 nits | 600-1000 nits | 600-1000 nits | 600-1000 nits |
| Max Power: | 19 /pcs | 19 w/pcs | 19 w/pcs | 19 w/pcs |
| Maintenance: | Front & Rear service | Front & Rear service | Front & Rear service | Front & Rear service |
| Environment: | Indoor Use | Indoor Use | Indoor Use | Indoor Use |
| IP Rating: | F: IP20, R: IP20 | F: IP20, R: IP20 | F: IP20, R: IP20 | F: IP20, R: IP20 |
| Refresh Rate: | >3840 Hz | >3840 Hz | >3840 Hz | >3840 Hz |
| Installation Type: | Mounting / Hanging | Mounting / Hanging | Mounting / Hanging | Mounting / Hanging |
| Gray Scale: | 14 bit | 14 bit | 14 bit | 14 bit |
| Viewing Angle: | H:140°；V:140° | H:140°；V:140° | H:140°；V:140° | H:140°；V:140° |
| Operational Temp: | -40℃~+60℃ | -40℃~+60℃ | -40℃~+60℃ | -40℃~+60℃ |
| Operational Humidity: | 10%~90% RH | 10%~90% RH | 10%~90% RH | 10%~90% RH |
APPLICATION:
1. Creative Designs
2. Giant outdoor advertising LED display
3. 360° emcompassing LED display screen
FAQ:
Q1:Can you provide customized services?
A1:Yes,we can design different category of products according to your demand.
Q2: Is it OK to print our logo on led screen product?
A2: Yes,we can print your logo according your request.
Q3: Can I order a sample for led display screen?
A3: Yes, we warmly welcome you to order a sample to test and check quality. You can choose any item what you want.
Q4: How much is the freight?
A4: The shipping cost is determined by the size of the screen, and the project information is informed by the inquiry.
Q5: What is price per square meter of screen?
A5: Welcome to send us inquiry. Our professional sales engineers will provide suitable solutions.
Q6: Do you offer guarantee for the products?
A6: Yes, we offer 2 years warranty to our products.
