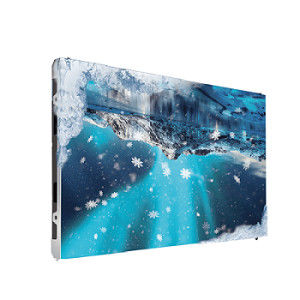

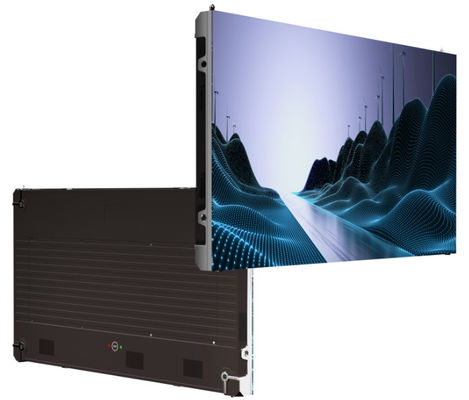

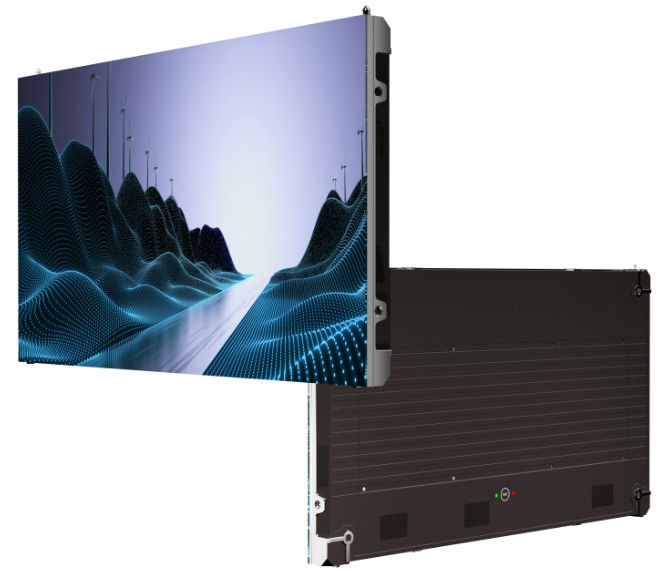

P0.7 COB Small Pixel Pitch LED Display With 600x337.5mm Die-casting Aliuminum Cabinet
Product Details:
| Place of Origin: | CN |
| Brand Name: | Visual World |
| Certification: | EMC,CE,FCC,ROHS |
| Model Number: | P0.7 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiate |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Plywood case,export carton box |
| Delivery Time: | 12 work days |
| Payment Terms: | T/T |
| Supply Ability: | 3000 sqm/month |
|
Detail Information |
|||
| Maintenance: | Front And Rear Service | Refresh Rate: | ＞3840Hz |
|---|---|---|---|
| Cabinet Material: | Die-casting Aliuminum | Cabinet Weight: | 4.6Kg |
| Display Type: | LED | Size: | 600x337.5mm |
| Pixel Pitch: | P0.7, P0.9, P1.25, P1.56 | Installation: | Wall Mounted/ Hanging |
| Highlight: | Die-casting Aliuminum LED Display,600x337.5mm LED Display,P0.7 COB LED Display |
||
Product Description
P0.7 COB Small Pixel Pitch LED Display with 600x337.5mm Die-casting Aliuminum Cabinet
Product Description:
The XMETA i series LED panels is a high-performance visualization LED display that is optimized for high-definition and high-resolution applications. With its 6000K adjustable color temperature, 600x337.5mm size and wall mounted/stacking/rack installation options, this LED display is perfect for creating stunning and vivid visuals. It also offers full front access for easy maintenance. The Fine Pixel Pitch LED Display is designed to be the perfect solution for any application requiring high-quality visuals and reliable performance.
Features:
- Ultra-low power consumption, brightness 600nits, single box power consumption of only 33w.
- Ultra-high brightness, standard products, the maximum brightness of up to 1200nits, power consumption of only 52w / box.
- Cold screen design, the maximum temperature of the white screen ≤ 39 ° c, playback of the video temperature ≤ 36 ° c.
- Low-radiation, class b design, to meet the needs of higher-end customers special scenes.
- Support intelligent module, real-time monitoring module voltage, temperature, signal and bad point detection function.
Technical Parameters:
| Product Name | Fine Pixel Pitch LED Display | |||
| Pixel Pitch: | 0.7 mm | 0.9 mm | 1.25 mm | 1.56 mm |
| LED Type: | COB | COB | COB | COB |
| Cabinet Dimension: | 600x337.5 mm | 600x337.5 mm | 600x337.5 mm | 600x337.5 mm |
| Module Size: | 150x168.75 mm | 150x168.75 mm | 150x168.75 mm | 150x168.75 mm |
| Cabinet Weight: | 4.6 kg | 4.6 kg | 4.6 kg | 4.6 kg |
| Cabinet Material: | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum |
| Driving Type: | 1/36 | 1/36 | 1/27 | 1/48 |
| Brightness: | 0-2000 nits | 0-2000 nits | 1500 nits | 1000 nits |
| Max/Avg Power: | 390/136 W/m2 | 420/147 W/m2 | 330/100 W/m2 | 330/100 W/m2 |
| Maintenance: | Front service | Front service | Front service | Front service |
| IP Rating: | Front: IP65 / Rear: IP30 | Front: IP65 / Rear: IP30 | Front: IP65 / Rear: IP30 | Front: IP65 / Rear: IP30 |
| Refresh Rate: | 3840 Hz | 3840 Hz | 3840 Hz | 3840 Hz |
| Installation Type: | Mounting/Hanging/Stacking | Mounting/Hanging/Stacking | Mounting/Hanging/Stacking | Mounting/Hanging/Stacking |
| Gray Scale: | 16 bit | 16 bit | 16 bit | 16 bit |
| Viewing Angle: | H:170°；V:170° | H:170°；V:170° | H:170°；V:170° | H:170°；V:170° |
| Operational Temp: | -20℃~+50℃ | -20℃~+50℃ | -20℃~+50℃ | -20℃~+50℃ |
| Operational Humidity: | 10%~90% RH | 10%~90% RH | 10%~90% RH | 10%~90% RH |
Applications:
- Advertising and marketing displays
- Corporate events and conferences
- Concerts and live performances
- Sports events and stadiums
- Control rooms and command centers
- Retail stores and shopping malls
- Museums and galleries
- And more!
We offer various shipping methods to meet different customer needs and budget:
- By sea: This is the most cost-effective option for large orders and long-distance shipping.
- By air: This is a faster option for urgent orders or shipments to remote areas.
- By express: This is the quickest option for small orders or samples.
Once the order is shipped, we will provide the tracking information to our customers so they can track the delivery status.
FAQ:
Q1.How can I get an accurate quote for an advertising signage LED video wall display screen?
A1:a. Please let us know which screen you need,indoor or outdoor ; pixel,screen size ,etc
b.Please tell us the usage scenarios (concerts, churches, exhibition halls, conference rooms, shopping mall billboards)
c. It would be better to have CAD drawings, artworks
Q2.How long does it take for me to get the price of indoor and outdoor LED display screen?
A2:-We usually quote immediately after receiving your inquiry
-If you need a price urgently, please send a TM message, email ,whatsapp or contact us by other ways
Q3. Can l buy samples and place an order?
A3:-Yes, welcome
Q4.What is your delivery time?Indoor and outdoor fixed video wall, indoor and outdoor rental LED panel
A4:-Depending on the orders’ situation, LED modules in stock will be shipped next day.
-Usually small quantities of customized products are shipped within 15 days, and large quantities are 15-20 woring days.
Q5. How many years is your LED screen warranty? (creative flexible LED screen, transparent display, )
A5:-Depending on LED Screens’ Configuration, 2-5 year warranty is for different order
Q6.How is your digital HD LED advertising screen packaged?
A6:-Packing in carton, wooden case or flight case
Q7.What are your payment terms?
A7:-T/T,Western Union, Credit Card,Paypal,etc -30% deposit +70% TT in hand before shipping
Q8. What is the shipping method?
A8:-Can be shipped by sea, air or express (EMS, UPS, DHL, TNT, FEDEX, etc.) Please confirm with us before placing an order.
Q9. How do you make our business long term and good relationship?
A9:a. We promise best quality and competitive price to ensure our clients will benefit more from our products;
b. We are honest, frank for all of our customers. We believe that a win-win situation can achieve longer time business cooperation
